SD-10 single 10-inch full-frequency speaker
Conventional Speaker
- Product Description
- Detailed parameters
-
- Commodity name: SD-10 single 10-inch full-frequency speaker
- Commodity ID: 1108417204727730176
● SD-10 is a high-power rugged divide-by-two system with a powerful 10 ''(256mm) low frequency driver and a 1 inch high frequency compression driver mounted on a horn with a continuous directivity of 90 degrees × 60 degrees; ● The high-frequency horn can be rotated, so that the multi-angle box can be placed horizontally or vertically; ● Make the system more concise, it is the ideal choice for the requirements of efficient and reliable full-frequency speaker occasions;
●SD-10 is a high-power rugged divide-by-two system with a powerful10''（256mm) Low frequency driver and a1Inch high frequency compression driver installed in a continuous directivity90Degree ×60degrees on the horn;
●The high-frequency horn can be rotated, so that the multi-angle box can be placed horizontally or vertically;
●Make the system more concise, it is the ideal choice for the requirements of efficient and reliable full-frequency speaker occasions;
●The same also applies to fixed installation and quick mobile installation.
Key words:- 广州声曼电子
- 专业音响
- 会议音响
-
UNIT ASSEMBLY
Treble 1 × 1 "Bass 1 × 10" (256mm)

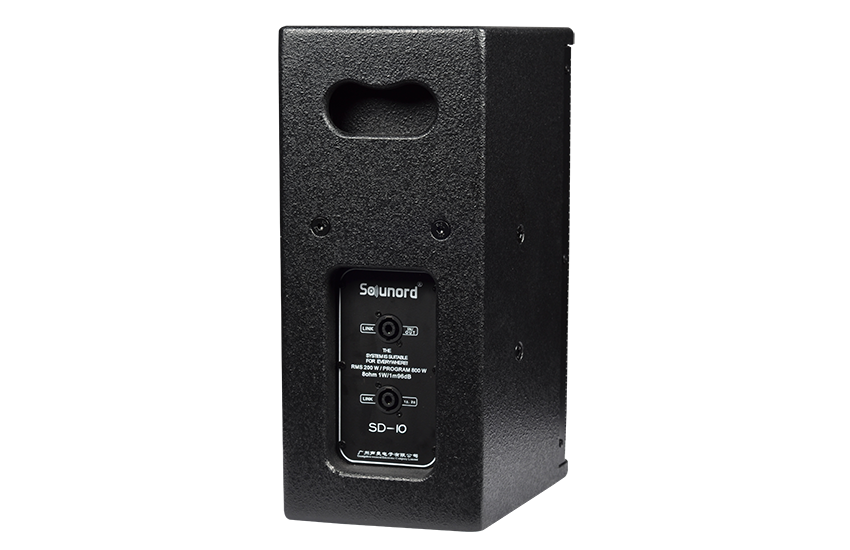

Connector
2 ×NEUTRIK NL4
frequency response
65Hz-18kHz±3dB
Sensitivity (1W/1M)
96dB
maximum sound pressure
122dB
Rated power
250Watts
Maximum power
900Watts
Coverage
100 ° Hor. × 55 ° Green.
Nominal impedance
8Ω
Recommended power amplifier
400 to 600 Watts into 8Ω

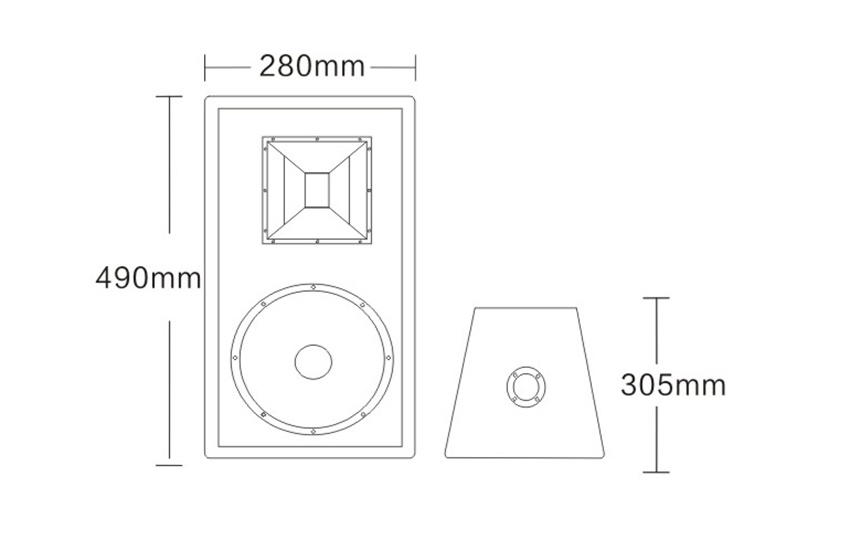

Dimensions (height×width×depth)
490 × 280 × 305mm
Net weight (only)
13.5kg
